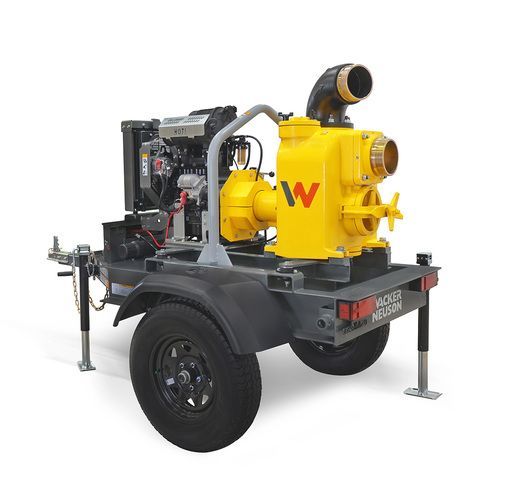

Wacker Neuson PT6Y Self Priming Trash Pump

Wacker Neuson PT6Y Self Priming Trash Pump

Back to catalog
$22,169.90
In stock
Product Details
Brand: Wacker Neuson

Diesel-powered pump for when long run time and a large amount of flow is needed.


Highlights

  • Shimmable wear plate for longevity and durability
  • Quick-release clean out cover
  • Central lifting eye
  • Powerful Yanmar engine
  • Control panel and battery


ENGINE Metric Imperial
Battery capacity (nom. value) 40 Ah 40 Ah
Air cleaner With Radial Seal With Radial Seal
Power rating max. 18,4 kW 24,7 hp
Engine operating mode four-stroke four-stroke
Engine speed 1 2.700 1/min 2.700 1/min
Cooling Water-cooling Water-cooling
Consumption at Speed 1 5,0 L/Std 1,3 GPH US
Exhaust-gas limit EPA Tier 4 final EPA Tier 4 final
Starter battery Voltage 12 V 12 V
Engine speed (Power max.) 3.000 1/min 3.000 1/min
Run Time at Speed 1 18,0 std 18,0 std
Starter type E-starter E-starter
Oil filling min. 1,60 l 0,4 gal US
Engine type Diesel engine Diesel engine
Cylinder 3 3
Engine Manufacturer Yanmar Yanmar
Standard (Operating power) ISO 3046 IFN ISO 3046 IFN
Cylinder capacity 1.267 cm3 77,3 Inch3
Tank capacity 90,00 l, null 23,8 gal US, null
Kraftstofftyp Diesel EN 590 Diesel EN 590
Oil filling max. 3,40 l 0,9 gal US
MECHANICAL - OUTPUT DETAILS Metric Imperial
Flow rate max. 4.304 l/min 1.137,0 gal/mi
Suction head max. 7,5 m 24,6 Foot
Solid diameter max. 50,0 mm 2,0 "
Delivery height max. 27,0 m 88,6 Foot
Pump pressure max. 2,6 bar 37,7 psi
MECHANICAL DETAILS Metric Imperial
Operating weight 870,0 kg 1.918,0 lb
Length 2.155 mm 84,8 "
Intake-/Pressure socket-dia. 152 mm 6,0 "
Height 1.714 mm 67,5 "
Width 1.491 mm 58,7 "
