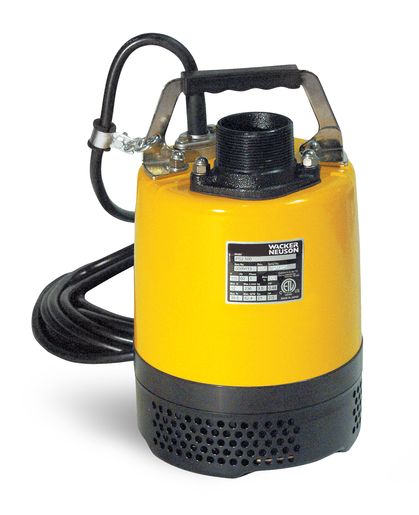

Wacker Neuson PS2 500 Submersible Trash Pump

Electric, low level residue, single-phase submersible pump for pumping low water levels.

Comes with:

• Submersible Pump
• Electrical supply cable
• Operator's manual

Highlights

• Top discharge for continuous operation and motor cooling
• Built-in thermal protection prevents motor damage
• Heavy-duty strain relief power cord
• Durable mechanical seals
• Lightweight, compact design

MOTOR	Metric	Imperial
Nominal current	6,1 A	6,1 A
Nominal speed	3.270 1/min	3.270 1/min
Nominal voltage	110 V	110 V
Nominal frequency	60 Hz	60 Hz
Nominal power	0,480 kW	0,480 kW

MECHANICAL - OUTPUT DETAILS	Metric	Imperial
Flow rate max.	236 l/min	62,3 gal/mi
Solid diameter max.	6,0 mm	0,2 "
Delivery height max.	12,0 m	39,4 Foot

SHIPPING AND STORAGE	Metric	Imperial
Width for shipping	248 mm	9,8 "
Shipping weight	12,70 kg	28,0 lb
Height for shipping	229 mm	9,0 "
Length for shipping	349 mm	13,7 "

ELECTRICAL SYSTEM	Metric	Imperial
Length Cable	10,00 m	32,8 Foot

MECHANICAL DETAILS	Metric	Imperial
Operating weight	9,5 kg	20,9 lb
Length	186 mm	7,3 "
Height	304 mm	12,0 "
Width	186 mm	7,3 "

ENVIRONMENT DATA	Metric	Imperial
Degree of protection	68	68
