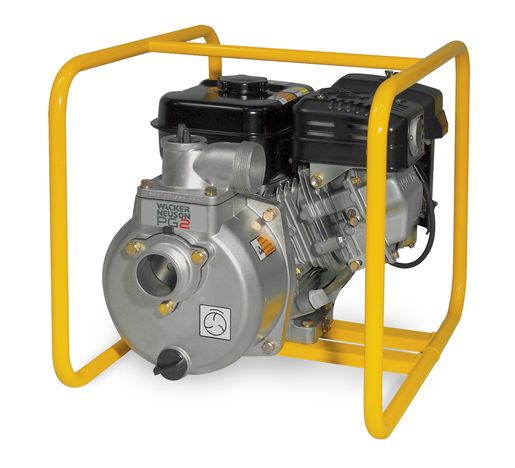

Wacker Neuson PG2A Clear Water Dewatering Pump

This simple, easy to use pump is designed to move water up to 600 l/min with very little solids, up to 6.35.

Highlights

• Pump out vanes on back of impeller.
• Cast iron impeller and volute for long life and minimal service
• Carbon ceramic mechanical seal

Comes with:

• Centrifugal Dewatering Pump
• Strainer
• T-bolt clamp
• BSP nipple fittings
• Operator's manual

ENGINE	Metric	Imperial
Power rating max.	2,6 kW, 2,6 kW	3,5 hp, 3,5 hp
Engine operating mode	four-stroke, four-stroke	four-stroke, four-stroke
Cooling	air cooling, air cooling	air cooling, air cooling
Fuel consumption	1,30 L/Std	0,3 GPH US
Engine speed (Power max.)	3.600 1/min, 3.600 1/min	3.600 1/min, 3.600 1/min
Engine type	Gasoline engine, Gasoline engine	Gasoline engine, Gasoline engine
Cylinder	1, 1	1, 1
Engine Manufacturer	Honda, Honda	Honda, Honda
Running time at 100%	1,9 std, null	1,9 std, null
Standard (Operating power)	SAE J1349, SAE J1349	SAE J1349, SAE J1349
Cylinder capacity	118 cm3, 118 cm3	7,2 Inch3, 7,2 Inch3
Tank capacity	2,50 l	0,7 gal US
Kraftstofftyp	Gasoline, Gasoline	Gasoline, Gasoline
Oil filling max.	0,60 l, 0,60 l	0,2 gal US, 0,2 gal US

MECHANICAL - OUTPUT DETAILS	Metric	Imperial
Flow rate max.	639 l/min	168,8 gal/mi
Suction head max.	7,6 m	24,9 Foot
Solid diameter max.	6,5 mm	0,3 "
Delivery height max.	27,0 m	88,6 Foot

MECHANICAL DETAILS	Metric	Imperial
Operating weight	25,0 kg	55,1 lb
Length	480 mm	18,9 "
Intake-/Pressure socket-dia.	50 mm	2,0 "
Height	395 mm	15,6 "
Width	375 mm	14,8 "
