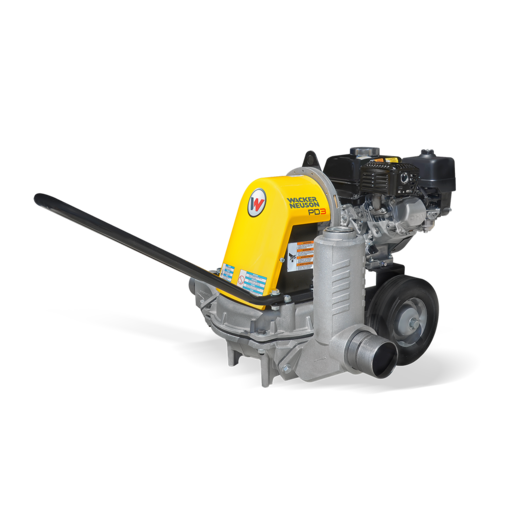

Wacker Neuson PDT3A Diaphragm Trash Pump

Wacker Neuson PDT3A Diaphragm Trash Pump

Back to catalog
$2,657.89
In stock
Product Details
Brand: Wacker Neuson

76 mm diaphragm pump powered by a Honda engine


Highlights

  • Straight through water flow design
  • Ductile iron crankcase for maximum durability.
  • Lightweight cast aluminum housing
  • Surge chamber on inlet side for smooth pumping
  • Oil bath lubricated transmission reduces maintenance costs


ENGINE Metric Imperial
Power rating max. 2,6 kW 3,5 hp
Cooling air cooling air cooling
Operating Engine speed 2.800 1/min 2.800 1/min
Fuel consumption 1,10 L/Std 0,3 GPH US
Engine speed (Power max.) 3.600 1/min 3.600 1/min
Engine type Gasoline engine Gasoline engine
Cylinder 1 1
Engine Manufacturer Honda Honda
Running time at 100% 2,0 std 2,0 std
Standard (Operating power) SAE J1349 SAE J1349
Cylinder capacity 118 cm3 7,2 Inch3
Tank capacity 2,00 l 0,5 gal US
Kraftstofftyp Gasoline Gasoline
Oil filling max. 0,60 l 0,2 gal US
MECHANICAL - OUTPUT DETAILS Metric Imperial
Flow rate max. 333 l/min 88,0 gal/mi
Suction head max. 6,1 m 20,0 Foot
Solid diameter max. 41,0 mm 1,6 "
Delivery height max. 7,6 m 24,9 Foot
SHIPPING AND STORAGE Metric Imperial
Shipping weight 79,00 kg 174,2 lb
ENVIRONMENT DATA Metric Imperial
Sound power LWA, measured 98,0 dB(A) 98,0 dB(A)
MECHANICAL DETAILS Metric Imperial
Length 1.102 mm 43,4 "
Intake-/Pressure socket-dia. 75 mm 3,0 "
Height 594 mm 23,4 "
Width 671 mm 26,4 "
