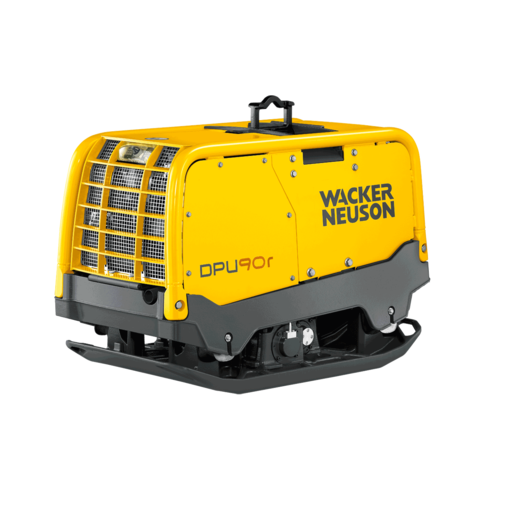

Wacker Neuson DPU90rLec770 Reversible Vibratory Compactor
$42,568.90
In stock
Product Details
Brand:
Wacker Neuson
Remote-control vibratory plate with diesel engine, electric starter and Compatec compaction control for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 30.32 in.
Highlights
- Compamatic
- Compact dimensions, high performance
- Sturdy and durable
- Infra-red remote control with tried and tested safety features
- Variable, precise control
| OPERATING FLUIDS | Metric | Imperial |
| Cooling fluid type | SAE J1034:Wasser (1:1) | SAE J1034:Wasser (1:1) |
| Exciter oil volume | 1,60 l | 1,69 qt US |
| Hydraulic fluid type | Renolin MR 520 | Renolin MR 520 |
| Hydraulic fluid volume | 17,700 l | 18,7 qt US |
| Cooling fluid volume | 3,30 l | 3,5 qt US |
| Exciter oil type | 75W-90 API GL-4 | 75W-90 API GL-4 |
| ENGINE | Metric | Imperial |
| Inclined position max. | 25,0 ° | 25,0 ° |
| Engine operating mode | four-stroke | four-stroke |
| Operating Engine speed | 3.350 1/min | 3.350 1/min |
| Fuel consumption | 2,70 L/Std | 0,7 GPH US |
| CO2 (NRSC) | 905,72 g/KWh | 905,72 g/KWh |
| Standard (Power max.) | ISO 3046-1 | ISO 3046-1 |
| Standard (Effective power) | ISO 3046-1 | ISO 3046-1 |
| Tank capacity | 7,20 l | 1,9 gal US |
| Nominal Engine speed | 3.350 1/min, 3.350 1/min | 3.350 1/min, 3.350 1/min |
| Oil filling max. | 1,60 l | 0,4 gal US |
| Effective power | 10,7 kW, 10,7 kW | 14,3 hp, 14,3 hp |
| Battery capacity (nom. value) | 50 Ah | 50 Ah |
| Air cleaner | Dry air filter | Dry air filter |
| Power rating max. | 11,7 kW | 15,7 hp |
| Cooling | Water-cooling | Water-cooling |
| Exhaust-gas limit | US Tier 4 | US Tier 4 |
| Oil specification | SAE 10W-40 | SAE 10W-40 |
| Starter battery Voltage | 12 V | 12 V |
| Engine speed (Power max.) | 3.600 1/min | 3.600 1/min |
| Starter type | E-starter | E-starter |
| Upper idling speed ex load | 3.450 1/min | 3.450 1/min |
| Operating power | 9,8 kW | 13,1 hp |
| Oil filling min. | 1,60 l | 0,4 gal US |
| Engine type | Diesel engine | Diesel engine |
| Cylinder | 2 | 2 |
| Engine Manufacturer | Kohler | Kohler |
| Standard (Operating power) | ISO 3046-1 | ISO 3046-1 |
| Cylinder capacity | 686 cm3 | 41,9 Inch3 |
| Kraftstofftyp | Diesel EN 590 | Diesel EN 590 |
| Oil volume incl. filter change | 1,60 l | 0,4 gal US |
| MECHANICAL - OUTPUT DETAILS | Metric | Imperial |
| Vibrations | 3.780 1/min | 3.780 1/min |
| Forward running | 28,00 m/min | 1,5 fps |
| Transmission | ELHY | ELHY |
| Gradeability | 34,0 % | 34,0 % |
| Centrifugal force | 90,000 kN | 20.233 lbf |
| Vibrations (Hz) | 63,0 Hz | 63,0 Hz |
| Area capacity | 1.294 m2/h | 13.928,6 ft2/h |
| HYDRAULIC | Metric | Imperial |
| Max. perm. hydraulic pressure | 230,0 bar | 3.335,0 psi |
| Operating pressure hydraulics | 148,0 bar | 2.146,0 psi |
| ELECTRICAL SYSTEM | Metric | Imperial |
| Remote Control Bat. Capacity | 8 h | 8 h |
| Recommended Battery Typ | Ni-MH 7,2V/2000mAh | Ni-MH 7,2V/2000mAh |
| Charging Time | 2,00 h | 2,00 h |
| Remote Control Range | 20 m | 65,6 Foot |
| MECHANICAL DETAILS | Metric | Imperial |
| Lenght Drawbar in op. pos. | 1.207 mm | 47,5 " |
| Operating weight | 724,0 kg | 1.596,1 lb |
| Ground clearance | 830 mm | 32,7 " |
| Height | 833 mm | 32,8 " |
| Width | 770 mm | 30,3 " |
| ENVIRONMENT DATA | Metric | Imperial |
| Operating temperature range | -10 - 50 °C | 14 - 122 °F |
| Sound level LpA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, guaranteed | 109,0 dB(A) | 109,0 dB(A) |
| Storage temperature range | -20 - 50 °C | -4 - 122 °F |
| Sound level LpA | 84,0 dB(A) | 84,0 dB(A) |
| Sound power LWA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, measured | 104,0 dB(A) | 104,0 dB(A) |
| Custom Attributes | Metric | Imperial |
| Model serie | DPU |
