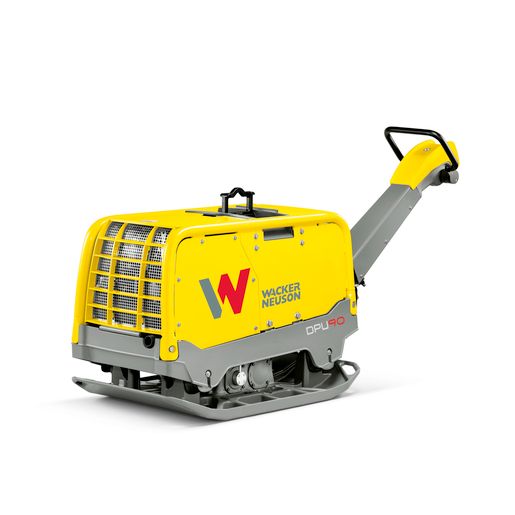

Wacker Neuson DPU90Lem770 Reversible Vibratory Compactor
$26,489.90
In stock
Product Details
Brand:
Wacker Neuson
Reversible vibratory plate with diesel engine, electric starter and machine protection for the highest requirements on performance, sturdiness and operating comfort in soil compaction. Operating width 30.32 in.
Highlights
- Compact dimensions, high performance
- Sturdy and durable
- Center pole
- Intuitive guide bar with continuously adjustable speed.
- Large tank, high capacity air filter
| OPERATING FLUIDS | Metric | Imperial |
| Cooling fluid type | SAE J1034:Wasser (1:1) | SAE J1034:Wasser (1:1) |
| Exciter oil volume | 1,35 l | 1,43 qt US |
| Hydraulic fluid type | Renolin MR 520 | Renolin MR 520 |
| Hydraulic fluid volume | 17,700 l | 18,7 qt US |
| Cooling fluid volume | 3,30 l | 3,5 qt US |
| Exciter oil type | 75W-90 API GL-4 | 75W-90 API GL-4 |
| ENGINE | Metric | Imperial |
| Inclined position max. | 25,0 ° | 25,0 ° |
| Engine operating mode | four-stroke | four-stroke |
| Operating Engine speed | 3.350 1/min | 3.350 1/min |
| Fuel consumption | 2,70 L/Std | 0,7 GPH US |
| CO2 (NRSC) | 905,72 g/KWh | 905,72 g/KWh |
| Standard (Power max.) | ISO 3046-1 | ISO 3046-1 |
| Standard (Effective power) | ISO 3046-1 | ISO 3046-1 |
| Tank capacity | 7,20 l | 1,9 gal US |
| Nominal Engine speed | 3.350 1/min, 3.350 1/min | 3.350 1/min, 3.350 1/min |
| Oil filling max. | 1,60 l | 0,4 gal US |
| Effective power | 10,7 kW, 10,7 kW | 14,3 hp, 14,3 hp |
| Battery capacity (nom. value) | 50 Ah | 50 Ah |
| Air cleaner | Dry air filter | Dry air filter |
| Power rating max. | 11,7 kW | 15,7 hp |
| Cooling | Water-cooling | Water-cooling |
| Exhaust-gas limit | US Tier 4 | US Tier 4 |
| Oil specification | SAE 10W-40 | SAE 10W-40 |
| Starter battery Voltage | 12 V | 12 V |
| Engine speed (Power max.) | 3.600 1/min | 3.600 1/min |
| Starter type | E-starter | E-starter |
| Upper idling speed ex load | 3.450 1/min | 3.450 1/min |
| Operating power | 9,8 kW | 13,1 hp |
| Oil filling min. | 1,60 l | 0,4 gal US |
| Engine type | Diesel engine | Diesel engine |
| Cylinder | 2 | 2 |
| Engine Manufacturer | Kohler | Kohler |
| Standard (Operating power) | ISO 3046-1 | ISO 3046-1 |
| Cylinder capacity | 686 cm3 | 41,9 Inch3 |
| Kraftstofftyp | Diesel EN 590 | Diesel EN 590 |
| Oil volume incl. filter change | 1,60 l | 0,4 gal US |
| MECHANICAL - OUTPUT DETAILS | Metric | Imperial |
| Vibrations | 3.780 1/min | 3.780 1/min |
| Forward running | 30,00 m/min | 1,6 fps |
| Transmission | ELHY | ELHY |
| Gradeability | 34,0 % | 34,0 % |
| Centrifugal force | 90,000 kN | 20.233 lbf |
| Vibrations (Hz) | 63,0 Hz | 63,0 Hz |
| Area capacity | 1.386 m2/h | 14.918,9 ft2/h |
| HYDRAULIC | Metric | Imperial |
| Max. perm. hydraulic pressure | 230,0 bar | 3.335,0 psi |
| Operating pressure hydraulics | 148,0 bar | 2.146,0 psi |
| ENVIRONMENT DATA | Metric | Imperial |
| Operating temperature range | -10 - 50 °C | 14 - 122 °F |
| Sound level LpA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, guaranteed | 109,0 dB(A) | 109,0 dB(A) |
| Storage temperature range | -20 - 50 °C | -4 - 122 °F |
| HAV summation (average value) | 2,5 m/s2 | 8,2 ft/s2 |
| Uncertainty in measurement HAV | 0,5 m/s2 | 1,6 ft/s2 |
| HAV summation (Standard) | EN 500-4 | EN 500-4 |
| Sound level LpA | 92,0 dB(A) | 92,0 dB(A) |
| Sound power LWA (Standard) | EN 500-4, 2000/14/EG | EN 500-4, 2000/14/EG |
| Sound power LWA, measured | 106,0 dB(A) | 106,0 dB(A) |
| MECHANICAL DETAILS | Metric | Imperial |
| Lenght Drawbar in op. pos. | 2.409 mm | 94,8 " |
| Operating weight | 771,0 kg | 1.699,8 lb |
| Ground clearance | 830 mm | 32,7 " |
| Height | 1.541 mm | 60,7 " |
| Width | 770 mm | 30,3 " |
| Custom Attributes | Metric | Imperial |
| Model serie | DPU |
