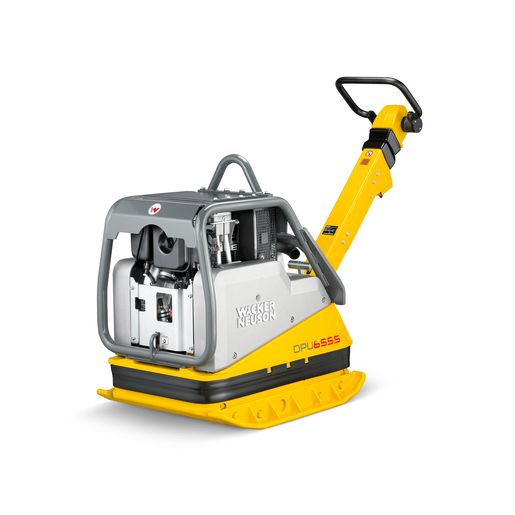

Wacker Neuson DPU6555Heh Reversible Vibratory Compactor
$21,190.89
In stock
Product Details
Brand:
Wacker Neuson
Reversible vibratory plates offers performance and durability for soil, asphalt and paving stone compaction.
Highlights
- Sturdy and durable
- Very good accessibility to all maintenance points
- High surface performance
| OPERATING FLUIDS | Metric | Imperial |
| Exciter oil volume | 0,75 l | 0,79 qt US |
| Hydraulic fluid type | Renolin MR 520 | Renolin MR 520 |
| Hydraulic fluid volume | 0,500 l | 0,5 qt US |
| Exciter oil type | 75W-90 API GL-4 | 75W-90 API GL-4 |
| ENGINE | Metric | Imperial |
| Inclined position max. | 25,0 ° | 25,0 ° |
| Engine operating mode | four-stroke | four-stroke |
| Operating Engine speed | 3.000 1/min | 3.000 1/min |
| Fuel consumption | 1,90 L/Std | 0,5 GPH US |
| Standard (Power max.) | ISO 3046 IFN | ISO 3046 IFN |
| Standard (Effective power) | ISO 3046 IFN | ISO 3046 IFN |
| Tank capacity | 7,00 l | 1,8 gal US |
| Nominal Engine speed | 3.000 1/min, 3.000 1/min | 3.000 1/min, 3.000 1/min |
| Oil filling max. | 1,90 l | 0,5 gal US |
| Effective power | 10,5 kW, 10,5 kW | 14,1 hp, 14,1 hp |
| Battery capacity (nom. value) | 45 Ah | 45 Ah |
| Air cleaner | Dry air filter | Dry air filter |
| Power rating max. | 10,5 kW | 14,1 hp |
| Cooling | air cooling | air cooling |
| Exhaust-gas limit | US Tier 4 | US Tier 4 |
| Oil specification | SAE 10W-40 | SAE 10W-40 |
| Starter battery Voltage | 12 V | 12 V |
| Engine speed (Power max.) | 3.000 1/min | 3.000 1/min |
| Starter type | E-starter | E-starter |
| Upper idling speed ex load | 3.000 1/min | 3.000 1/min |
| Operating power | 6,8 kW | 9,1 hp |
| Oil filling min. | 1,00 l | 0,3 gal US |
| Engine type | Diesel engine | Diesel engine |
| Cylinder | 1 | 1 |
| Engine Manufacturer | Hatz | Hatz |
| Standard (Operating power) | ISO 3046 IFN | ISO 3046 IFN |
| Cylinder capacity | 722 cm3 | 44,1 Inch3 |
| Kraftstofftyp | Diesel EN 590 | Diesel EN 590 |
| MECHANICAL - OUTPUT DETAILS | Metric | Imperial |
| Vibrations | 4.150 1/min | 4.150 1/min |
| Forward running | 28,00 m/min | 1,5 fps |
| Transmission | FKR | FKR |
| Gradeability | 46,6 % | 46,6 % |
| Centrifugal force | 65,000 kN | 14.613 lbf |
| Vibrations (Hz) | 69,0 Hz | 69,0 Hz |
| Area capacity | 1.200 m2/h | 12.916,8 ft2/h |
| ENVIRONMENT DATA | Metric | Imperial |
| Operating temperature range | -15 - 40 °C | 5 - 104 °F |
| Sound level LpA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, guaranteed | 109,0 dB(A) | 109,0 dB(A) |
| Storage temperature range | -15 - 40 °C | 5 - 104 °F |
| HAV summation (average value) | 2,5 m/s2 | 8,2 ft/s2 |
| Uncertainty in measurement HAV | 0,5 m/s2 | 1,6 ft/s2 |
| HAV summation (Standard) | EN 500-4 | EN 500-4 |
| Sound level LpA | 97,0 dB(A) | 97,0 dB(A) |
| Sound power LWA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, measured | 108,0 dB(A) | 108,0 dB(A) |
| MECHANICAL DETAILS | Metric | Imperial |
| Lenght Drawbar in op. pos. | 1.664 mm | 65,5 " |
| Operating weight | 482,0 kg | 1.062,6 lb |
| Ground clearance | 861 - 1.005 mm | 33,9 - 39,6 " |
| Height | 1.308 mm | 51,5 " |
| Width | 710 mm | 28,0 " |
| Custom Attributes | Metric | Imperial |
| Model series | DPU |
