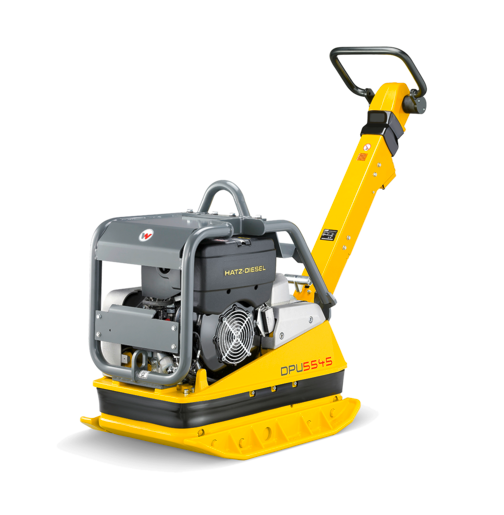

Wacker Neuson DPU5545Heh Reversible Vibratory Compactor
$17,368.80
In stock
Product Details
Brand:
Wacker Neuson
Reversible vibratory plates offers performance and durability for soil, asphalt and paving stone compaction.
Highlights
- Sturdy and durable
- Very good accessibility to all maintenance points
- High surface performance
| OPERATING FLUIDS | Metric | Imperial |
| First oil change | 25 h | 25 h |
| Exciter oil volume | 0,75 l | 0,79 qt US |
| Hydraulic fluid type | Renolin MR 520 | Renolin MR 520 |
| Hydraulic fluid volume | 0,500 l | 0,5 qt US |
| Oil change interval | 250 h | 250 h |
| Exciter oil type | SAE 10W-40 | SAE 10W-40 |
| ENGINE | Metric | Imperial |
| Inclined position max. | 25,0 ° | 25,0 ° |
| Engine operating mode | four-stroke | four-stroke |
| Operating Engine speed | 3.000 1/min | 3.000 1/min |
| Fuel consumption | 1,60 L/Std | 0,4 GPH US |
| Standard (Power max.) | ISO 3046 IFN | ISO 3046 IFN |
| Standard (Effective power) | ISO 3046 IFN | ISO 3046 IFN |
| Nominal Engine speed | 3.000 1/min, 3.000 1/min | 3.000 1/min, 3.000 1/min |
| Oil filling max. | 1,60 l | 0,4 gal US |
| Effective power | 7,6 kW, 7,6 kW | 10,2 hp, 10,2 hp |
| Battery capacity (nom. value) | 45 Ah | 45 Ah |
| Air cleaner | Dry air filter | Dry air filter |
| Power rating max. | 7,9 kW | 10,6 hp |
| Cooling | air cooling | air cooling |
| Exhaust-gas limit | US Tier 4 | US Tier 4 |
| Oil specification | SAE 10W-40 | SAE 10W-40 |
| Starter battery Voltage | 12 V | 12 V |
| Engine speed (Power max.) | 3.600 1/min | 3.600 1/min |
| Starter type | E-starter | E-starter |
| Upper idling speed ex load | 3.000 1/min | 3.000 1/min |
| Operating power | 4,4 kW | 5,9 hp |
| Oil filling min. | 0,80 l | 0,2 gal US |
| Engine type | Diesel engine | Diesel engine |
| Cylinder | 1 | 1 |
| Engine Manufacturer | Hatz | Hatz |
| Standard (Operating power) | ISO 3046 IFN | ISO 3046 IFN |
| Cylinder capacity | 517 cm3 | 31,5 Inch3 |
| Kraftstofftyp | Diesel EN 590 | Diesel EN 590 |
| MECHANICAL - OUTPUT DETAILS | Metric | Imperial |
| Vibrations | 4.150 1/min | 4.150 1/min |
| Forward running | 23,50 m/min | 1,3 fps |
| Transmission | FKR | FKR |
| Gradeability | 57,7 % | 57,7 % |
| Centrifugal force | 55,000 kN | 12.364 lbf |
| Vibrations (Hz) | 69,0 Hz | 69,0 Hz |
| Area capacity | 852 m2/h | 9.170,9 ft2/h |
| ENVIRONMENT DATA | Metric | Imperial |
| Operating temperature range | -15 - 40 °C | 5 - 104 °F |
| Sound level LpA (Standard) | EN 500-4 | EN 500-4 |
| Storage temperature range | -15 - 40 °C | 5 - 104 °F |
| Uncertainty in measurement HAV | 0,5 m/s2 | 1,6 ft/s2 |
| HAV summation (Standard) | EN 500-4 | EN 500-4 |
| Sound level LpA | 97,0 dB(A) | 97,0 dB(A) |
| MECHANICAL DETAILS | Metric | Imperial |
| Lenght Drawbar in op. pos. | 1.661 mm | 65,4 " |
| Operating weight | 419,0 kg | 923,7 lb |
| Ground clearance | 776 - 900 mm | 30,6 - 35,4 " |
| Height | 1.308 mm | 51,5 " |
| Width | 604 mm | 23,8 " |
