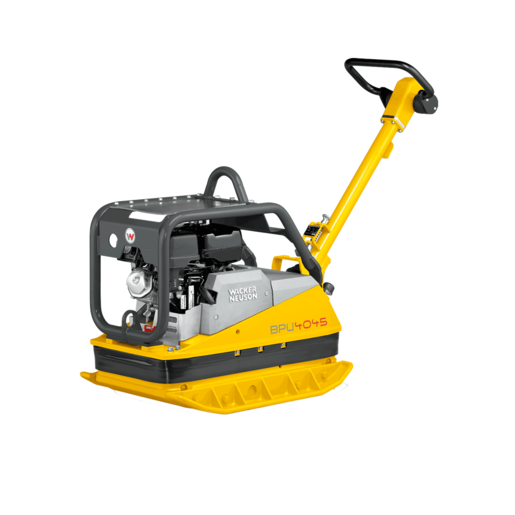

Wacker Neuson BPU 4045A US Reversible Gas Vibratory Plate Compactor
$13,209.88
In stock
Product Details
Reversible vibratory plate with a gasoline engine for heavy demands on performance and sturdiness in soil, asphalt and paving stone compaction.
Highlights
- Sturdy and durable
- Very good accessibility to all maintenance points
- High surface performance
| OPERATING FLUIDS | Metric | Imperial |
| Cooling fluid type | 0 | 0 |
| Exciter oil volume | 0,75 l | 0,79 qt US |
| Hydraulic fluid type | Renolin MR 520 | Renolin MR 520 |
| Hydraulic fluid volume | 0,500 l | 0,5 qt US |
| Cooling fluid volume | 0,00 l | 0,0 qt US |
| Exciter oil type | 75W-90 API GL-4 | 75W-90 API GL-4 |
| ENGINE | Metric | Imperial |
| Fuel management | Carburettor | Carburettor |
| Inclined position max. | 20,0 ° | 20,0 ° |
| Engine operating mode | four-stroke | four-stroke |
| Operating Engine speed | 2.600 1/min | 2.600 1/min |
| Fuel consumption | 1,60 L/Std | 0,4 GPH US |
| CO2 (NRSC) | 762,00 g/KWh | 762,00 g/KWh |
| Standard (Power max.) | SAE J1349 | SAE J1349 |
| Standard (Effective power) | SAE J1349 | SAE J1349 |
| Tank capacity | 5,30 l | 1,4 gal US |
| Nominal Engine speed | 3.600 1/min, 2.600 1/min | 3.600 1/min, 2.600 1/min |
| Electrode distance | 0,70 - 0,80 mm | 0,028 - 0,032 " |
| Oil filling max. | 1,10 l | 0,3 gal US |
| Effective power | 5,1 kW, 5,1 kW | 6,8 hp, 6,8 hp |
| Battery capacity (nom. value) | 0 Ah | 0 Ah |
| Air cleaner | Dry air filter | Dry air filter |
| Power rating max. | 6,3 kW | 8,4 hp |
| Cooling | air cooling | air cooling |
| Exhaust-gas limit | EU Stage V, US Phase 3 | EU Stage V, US Phase 3 |
| Oil specification | SAE 10W-30 | SAE 10W-30 |
| Starter battery Voltage | 0 V | 0 V |
| Engine speed (Power max.) | 3.600 1/min | 3.600 1/min |
| Starter type | Recoil starter | Recoil starter |
| Operating power | 4,6 kW | 6,2 hp |
| Oil filling min. | 1,10 l | 0,3 gal US |
| Engine type | Gasoline engine | Gasoline engine |
| Cylinder | 1 | 1 |
| Engine Manufacturer | Honda | Honda |
| Standard (Operating power) | ISO 3046 IFN | ISO 3046 IFN |
| Cylinder capacity | 270 cm3 | 16,5 Inch3 |
| Spark plug(s) | Denso W20EPR-U, NGK BPR-6 ES | Denso W20EPR-U, NGK BPR-6 ES |
| Kraftstofftyp | Gasoline | Gasoline |
| Oil volume incl. filter change | 1,10 l | 0,3 gal US |
| MECHANICAL - OUTPUT DETAILS | Metric | Imperial |
| Vibrations | 4.140 1/min | 4.140 1/min |
| Forward running | 24,00 m/min | 1,3 fps |
| Transmission | FKR | FKR |
| Gradeability | 36,4 % | 36,4 % |
| Centrifugal force | 40,000 kN | 8.992 lbf |
| Vibrations (Hz) | 69,0 Hz | 69,0 Hz |
| Area capacity | 870 m2/h | 9.364,7 ft2/h |
| ENVIRONMENT DATA | Metric | Imperial |
| Operating temperature range | -15 - 40 °C | 5 - 104 °F |
| Sound level LpA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, guaranteed | 108,0 dB(A) | 108,0 dB(A) |
| Storage temperature range | -15 - 40 °C | 5 - 104 °F |
| HAV summation (average value) | 2,5 m/s2 | 8,2 ft/s2 |
| Uncertainty in measurement HAV | 0,5 m/s2 | 1,6 ft/s2 |
| HAV summation (Standard) | EN 500-4 | EN 500-4 |
| Sound level LpA | 90,0 dB(A) | 90,0 dB(A) |
| Sound power LWA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, measured | 104,0 dB(A) | 104,0 dB(A) |
| MECHANICAL DETAILS | Metric | Imperial |
| Lenght Drawbar in op. pos. | 1.661 mm | 65,4 " |
| Operating weight | 339,0 kg | 747,4 lb |
| Ground clearance | 725 - 859 mm | 28,5 - 33,8 " |
| Height | 1.308 mm | 51,5 " |
| Width | 604 mm | 23,8 " |
| Custom Attributes | Metric | Imperial |
| Model serie | BPU |
