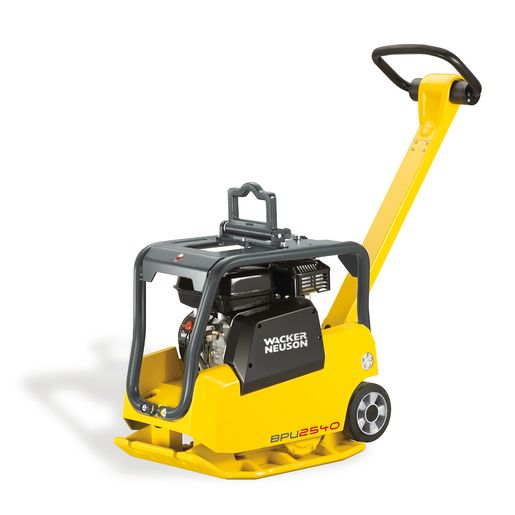

Wacker Neuson BPU 2540A US Reversible Gas Vibratory Plate Compactor
$6,980.88
In stock
Product Details
Reversible vibratory plate with gasoline engine. The flexible all-rounder for soil, asphalt and pavement compaction.
Highlights
- Compact dimensions, high performance
- Integrated wheel set
- Sturdy and durable
| OPERATING FLUIDS | Metric | Imperial |
| Cooling fluid type | 0 | 0 |
| Exciter oil volume | 0,60 l | 0,63 qt US |
| Hydraulic fluid type | Renolin MR 520 | Renolin MR 520 |
| Hydraulic fluid volume | 0,285 l | 0,3 qt US |
| Cooling fluid volume | 0,00 l | 0,0 qt US |
| Exciter oil type | 75W-90 API GL-4 | 75W-90 API GL-4 |
| ENGINE | Metric | Imperial |
| Fuel management | Carburettor | Carburettor |
| Inclined position max. | 20,0 ° | 20,0 ° |
| Engine operating mode | four-stroke | four-stroke |
| Operating Engine speed | 3.520 1/min | 3.520 1/min |
| Fuel consumption | 0,80 L/Std | 0,2 GPH US |
| Standard (Power max.) | SAE J1349 | SAE J1349 |
| Standard (Effective power) | ISO 3046 IFN | ISO 3046 IFN |
| Tank capacity | 3,60 l | 1,0 gal US |
| Nominal Engine speed | 3.600 1/min, 2.800 1/min | 3.600 1/min, 2.800 1/min |
| Oil filling max. | 0,60 l | 0,2 gal US |
| Effective power | 3,1 kW, 3,1 kW | 4,2 hp, 4,2 hp |
| Battery capacity (nom. value) | 0 Ah | 0 Ah |
| Air cleaner | Dry air filter | Dry air filter |
| Power rating max. | 3,6 kW | 4,8 hp |
| Cooling | air cooling | air cooling |
| Exhaust-gas limit | EPA4/08, EU Stage V | EPA4/08, EU Stage V |
| Oil specification | SAE 10W-30 | SAE 10W-30 |
| Starter battery Voltage | 0 V | 0 V |
| Engine speed (Power max.) | 3.600 1/min | 3.600 1/min |
| Starter type | Recoil starter | Recoil starter |
| Operating power | 2,9 kW | 3,9 hp |
| Oil filling min. | 0,60 l | 0,2 gal US |
| Engine type | Gasoline engine | Gasoline engine |
| Cylinder | 1 | 1 |
| Engine Manufacturer | Honda | Honda |
| Standard (Operating power) | ISO 3046 IFN | ISO 3046 IFN |
| Cylinder capacity | 163 cm3 | 9,9 Inch3 |
| Spark plug(s) | NGK BP-6 ES | NGK BP-6 ES |
| Kraftstofftyp | Gasoline | Gasoline |
| Oil volume incl. filter change | 0,60 l | 0,2 gal US |
| MECHANICAL - OUTPUT DETAILS | Metric | Imperial |
| Vibrations | 5.400 1/min | 5.400 1/min |
| Forward running | 19,00 m/min | 1,0 fps |
| Transmission | FKK | FKK |
| Gradeability | 36,4 % | 36,4 % |
| Centrifugal force | 25,000 kN | 5.620 lbf |
| Vibrations (Hz) | 90,0 Hz | 90,0 Hz |
| Area capacity | 456 m2/h | 4.908,4 ft2/h |
| HYDRAULIC | Metric | Imperial |
| Max. perm. hydraulic pressure | 0,0 bar | 0,0 psi |
| Operating pressure hydraulics | 0,0 bar | 0,0 psi |
| ELECTRICAL SYSTEM | Metric | Imperial |
| Remote Control Bat. Capacity | 0 h | 0 h |
| Electrode distance | 0,70 - 0,80 mm | 0,028 - 0,032 " |
| Coding options | 0 | 0 |
| Recommended Battery Typ | 0 | 0 |
| Charging Time | 0,00 h | 0,00 h |
| Remote Control Range | 0 m | 0,0 Foot |
| MECHANICAL DETAILS | Metric | Imperial |
| Lenght Drawbar in op. pos. | 1.292 mm | 50,9 " |
| Operating weight | 145,0 kg | 319,7 lb |
| Ground clearance | 666 - 776 mm | 26,2 - 30,6 " |
| Height | 1.097 mm | 43,2 " |
| Width | 400 mm | 15,7 " |
| ENVIRONMENT DATA | Metric | Imperial |
| Operating temperature range | -15 - 40 °C | 5 - 104 °F |
| Sound level LpA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, guaranteed | 108,0 dB(A) | 108,0 dB(A) |
| Storage temperature range | -15 - 40 °C | 5 - 104 °F |
| HAV summation (average value) | 2,5 m/s2 | 8,2 ft/s2 |
| Uncertainty in measurement HAV | 0,5 m/s2 | 1,6 ft/s2 |
| HAV summation (Standard) | EN 500-4 | EN 500-4 |
| Sound level LpA | 81,0 dB(A) | 81,0 dB(A) |
| Sound power LWA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, measured | 107,0 dB(A) | 107,0 dB(A) |
| Custom Attributes | Metric | Imperial |
| Model serie | BPU |
