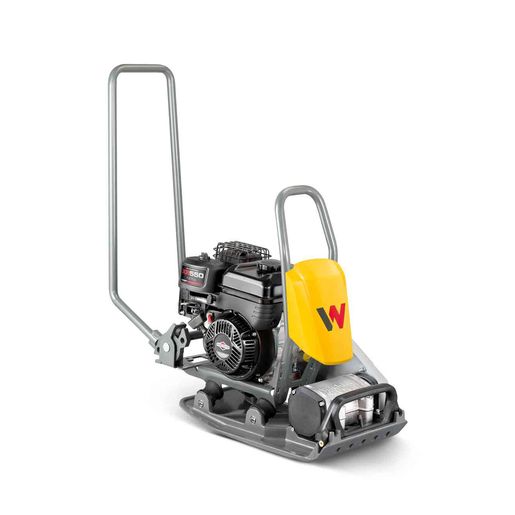

Wacker Neuson BPS1550B Single-Direction Gas Vibratory Plate Compactor
$2,219.68
In stock
Product Details
Single-direction vibratory plate with Briggs&Stratton gasoline engine.
Highlights
- Excellent turning ability and control with simultaneously low HAV
- Large selection of engines
| ENGINE | Metric | Imperial |
| Fuel management | Carburettor | Carburettor |
| Inclined position max. | 15,0 ° | 15,0 ° |
| Engine operating mode | four-stroke | four-stroke |
| Operating Engine speed | 3.600 1/min | 3.600 1/min |
| CO2 (NRSC) | 966,16 g/KWh | 966,16 g/KWh |
| Standard (Power max.) | SAE J1940 | SAE J1940 |
| Standard (Effective power) | SAE J1940 | SAE J1940 |
| Nominal Engine speed | 3.600 1/min, 3.600 1/min | 3.600 1/min, 3.600 1/min |
| Electrode distance | 0,76 mm | 0,030 " |
| Oil filling max. | 0,60 l | 0,2 gal US |
| Effective power | 3,6 kW, 4,1 kW | 4,8 hp, 5,5 hp |
| Air cleaner | Dry air filter | Dry air filter |
| Power rating max. | 4,1 kW | 5,5 hp |
| Cooling | air cooling | air cooling |
| Exhaust-gas limit | US Phase 3, EU Stage V, China Stage 2 | US Phase 3, EU Stage V, China Stage 2 |
| Oil specification | SAE 5W-30 | SAE 5W-30 |
| Engine speed (Power max.) | 3.600 1/min | 3.600 1/min |
| Starter type | Recoil starter | Recoil starter |
| Upper idling speed ex load | 3.600 1/min | 3.600 1/min |
| Oil filling min. | 0,60 l | 0,2 gal US |
| Engine type | Gasoline engine | Gasoline engine |
| Cylinder | 1 | 1 |
| Engine Manufacturer | Briggs & Stratton | Briggs & Stratton |
| Standard (Operating power) | SAE J1940 | SAE J1940 |
| Cylinder capacity | 163 cm3 | 9,9 Inch3 |
| Spark plug(s) | Torch F6TC | Torch F6TC |
| Kraftstofftyp | Gasoline | Gasoline |
| Oil volume incl. filter change | 0,60 l | 0,2 gal US |
| Engine Designation | 1062320272F1 | 1062320272F1 |
| MECHANICAL - OUTPUT DETAILS | Metric | Imperial |
| Vibrations | 5.880 1/min | 5.880 1/min |
| Forward running | 25,00 m/min | 1,4 fps |
| Transmission | FKK-KR | FKK-KR |
| Gradeability | 36,4 % | 36,4 % |
| Centrifugal force | 15,000 kN | 3.372 lbf |
| Vibrations (Hz) | 98,0 Hz | 98,0 Hz |
| Area capacity | 750 m2/h | 8.073,0 ft2/h |
| ENVIRONMENT DATA | Metric | Imperial |
| Operating temperature range | -15 - 45 °C | 5 - 113 °F |
| Sound power LWA, guaranteed | 108,0 dB(A) | 108,0 dB(A) |
| Storage temperature range | -15 - 40 °C | 5 - 104 °F |
| HAV summation (average value) | 4,1 m/s2 | 13,5 ft/s2 |
| Uncertainty in measurement HAV | 0,5 m/s2 | 1,6 ft/s2 |
| HAV summation (Standard) | EN 500-4 | EN 500-4 |
| Sound level LpA | 95,0 dB(A) | 95,0 dB(A) |
| Sound power LWA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, measured | 107,0 dB(A) | 107,0 dB(A) |
| MECHANICAL DETAILS | Metric | Imperial |
| Lenght Drawbar in op. pos. | 970 mm | 38,2 " |
| Operating weight | 78,0 kg | 172,0 lb |
| Ground clearance | 663 mm | 26,1 " |
| Height | 663 mm | 26,1 " |
| Width | 500 mm | 19,7 " |
| Custom Attributes | Metric | Imperial |
| Model serie | BPS |
