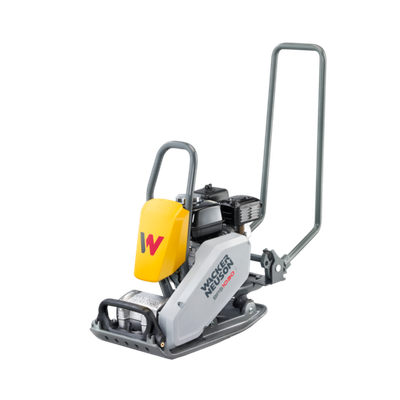

Wacker Neuson BPS1030A Single-Direction Gas Vibratory Plate Compactor
$1,789.80
In stock
Product Details
Single-direction vibratory plate with Honda gasoline engine.
Highlights
- Excellent turning ability and control with simultaneously low HAV
- Large selection of engines
| ENGINE | Metric | Imperial |
| Fuel management | Carburettor | Carburettor |
| Inclined position max. | 20,0 ° | 20,0 ° |
| Engine operating mode | four-stroke | four-stroke |
| Operating Engine speed | 3.600 1/min | 3.600 1/min |
| Fuel consumption | 1,00 L/Std | 0,3 GPH US |
| Standard (Power max.) | SAE J1349 | SAE J1349 |
| Standard (Effective power) | ISO 3046 IFN | ISO 3046 IFN |
| Tank capacity | 2,50 l | 0,7 gal US |
| Nominal Engine speed | 3.600 1/min, 3.600 1/min | 3.600 1/min, 3.600 1/min |
| Electrode distance | 0,70 - 0,80 mm | 0,028 - 0,032 " |
| Oil filling max. | 0,60 l | 0,2 gal US |
| Effective power | 2,6 kW, 2,6 kW | 3,5 hp, 3,5 hp |
| Air cleaner | Dry air filter | Dry air filter |
| Power rating max. | 2,6 kW | 3,5 hp |
| Cooling | air cooling | air cooling |
| Exhaust-gas limit | EPA4/08, EU Stage V | EPA4/08, EU Stage V |
| Oil specification | SAE 10W-30 | SAE 10W-30 |
| Engine speed (Power max.) | 3.600 1/min | 3.600 1/min |
| Starter type | Recoil starter | Recoil starter |
| Operating power | 2,1 kW | 2,8 hp |
| Oil filling min. | 0,60 l | 0,2 gal US |
| Engine type | Gasoline engine | Gasoline engine |
| Cylinder | 1 | 1 |
| Engine Manufacturer | Honda | Honda |
| Standard (Operating power) | ISO 3046 IFN | ISO 3046 IFN |
| Cylinder capacity | 118 cm3 | 7,2 Inch3 |
| Spark plug(s) | NGK BP-6 ES | NGK BP-6 ES |
| Kraftstofftyp | Gasoline | Gasoline |
| Oil volume incl. filter change | 0,60 l | 0,2 gal US |
| MECHANICAL - OUTPUT DETAILS | Metric | Imperial |
| Vibrations | 5.880 1/min | 5.880 1/min |
| Forward running | 26,00 m/min | 1,4 fps |
| Transmission | FKR | FKR |
| Gradeability | 36,4 % | 36,4 % |
| Centrifugal force | 10,000 kN | 2.248 lbf |
| Vibrations (Hz) | 98,0 Hz | 98,0 Hz |
| Area capacity | 500 m2/h | 5.382,0 ft2/h |
| ENVIRONMENT DATA | Metric | Imperial |
| Operating temperature range | -15 - 45 °C | 5 - 113 °F |
| Sound level LpA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, guaranteed | 105,0 dB(A) | 105,0 dB(A) |
| Storage temperature range | -15 - 40 °C | 5 - 104 °F |
| HAV summation (average value) | 4,6 m/s2 | 15,1 ft/s2 |
| Uncertainty in measurement HAV | 0,5 m/s2 | 1,6 ft/s2 |
| HAV summation (Standard) | EN 500-4 | EN 500-4 |
| Sound level LpA | 92,0 dB(A) | 92,0 dB(A) |
| Sound power LWA (Standard) | EN 500-4 | EN 500-4 |
| Sound power LWA, measured | 104,0 dB(A) | 104,0 dB(A) |
| MECHANICAL DETAILS | Metric | Imperial |
| Lenght Drawbar in op. pos. | 930 mm | 36,6 " |
| Operating weight | 50,0 kg | 110,2 lb |
| Ground clearance | 663 mm | 26,1 " |
| Height | 663 mm | 26,1 " |
| Width | 320 mm | 12,6 " |
| Custom Attributes | Metric | Imperial |
| Model serie | BPS |
