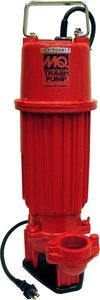

Multiquip ST2010TCUL Electric Submersible Trash Pumps

2 Inch Discharge, 115V 1Ø, 1.0 HP, 95 GPM. 45 ft Total Head

This compact submersible trash pump is ideal for moving water with debris (Maximum size - 1” solids). The Industrial grade cast iron housing and abrasion resistant Cast Iron Impeller tackles tough dewatering applications and heavy usage operations. Further, the ST2010TCUL incorporates a carrying handle, internal thermal overload protection, dual shaft seals, sealed ball bearings impeller, easy impeller clean-out, and molded 50’ Power Cable with strain relief.

Unit Specifications

Impeller Type	Neoprene Rubber over Cast-Iron
Impeller Disc Size	2 in	51 mm
Total Head	40 ft	12.2 m
Water Capacity	79 gpm	299 lpm
Max. Solid Intake	0 in	0 mm

Electrical Specifications

Power	1 HP	0.75 kW
Phase	Single
Voltage	115 V
Starting Amperage	30 A
Running Amperage	6.8 A
Cable Length	25 ft	7.6 m

Dimensions & Weights

Pump Diameter	10.3 in	262 mm
Overall Height	24.5 in	622 mm
Operating Weight	77 lb	35 kg
