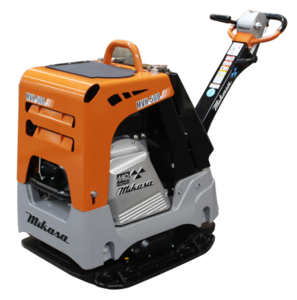

Multiquip MVH508GV Reversible Plate Compactor

Multiquip MVH508GV Reversible Plate Compactor

Store / Compaction Equipment Sales / Vibratory Plate Compactors
$17,051.60
In stock
Product Details
Brand: Multiquip

13,489 lbs cf, Vanguard 400 Gas Engine, 20" wide plate

Our biggest MQ-Mikasa reversible plate compactor has long been the contractors’ top choice for maximum performance. Now it’s available with a Vanguard 400 gasoline engine. Multiquip's Mikasa brand reversible plate compactors are the ideal high-production machines for efficient compaction of sand, gravel and cohesive soils.

  • Reliable engine from Vanguard offering easy electric or recoil start-up.
  • Fold-out front and rear covers for easy access to all maintenance points.
  • Hour/Tachometer to measure machine hour usage and engine RPM.
  • Cyclonic pre-cleaner to capture most airborne contaminants for engine protection and extended service life.
  • Heavy duty shock mounts to withstand harsh operating environment while reducing vibration to the operator and helping to extend component life.
  • Hydraulic controls enables operator to easily switch direction from forward to reverse while also allowing for spot compaction.
  • Rugged base plate manufactured from high strength steel for top performance and featuring open design for easy cleanup.
  • Steel frame protective guard with fully integrated cage protects the engine from loose debris or dirt while serving as a lifting bar for easy portability.
  • Low profile base plate lowers the center of gravity dramatically improving travel speed.
  • Extension plates can be added or removed to operating working width up to 6 inches.


Unit Specifications
Centrifugal Force 13489 lbf 60 kN
Exciter Speed 4,400 VPM
Plate Size 20x35 in
500x900 mm
Plate Size
with Extensions		 26x35 in
650x900 mm
Max Forward Speed
Per Min.		 82 ft 25 m
Dimensions & Weights
Overall Length 63 in 1600 mm
Overall Width 26 in 650 mm
Overall Height 48 in 1210 mm
Operating Weight 970 lb 440 kg
Shipping Weight 968 lb 440 kg

Show More
Save this product for later
Share this product with your friends
Pin it
Multiquip MVH508GV Reversible Plate Compactor
Store / Compaction Equipment Sales / Vibratory Plate Compactors
You May Also Like
Husqvarna LG504 850mm Reversible Plate Compactor
Husqvarna LG504 850mm Reversible Plate Compactor
Husqvarna LG504 850mm Reversible Plate Compactor
$16,589.90

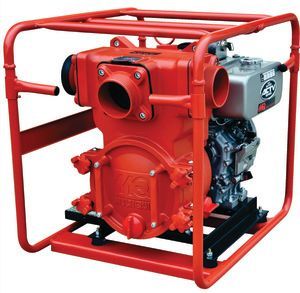

Multiquip QP4TK Diesel-Powered Trash Pumps
Multiquip QP4TK Diesel-Powered Trash Pumps
Multiquip QP4TK Diesel-Powered Trash Pumps
$6,707.61

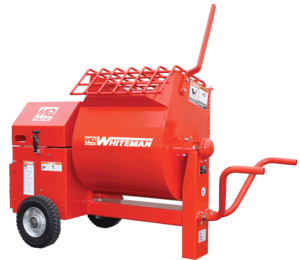

Whiteman WM120PHD Polyethylene-Drum Plaster/Mortar Mixers
