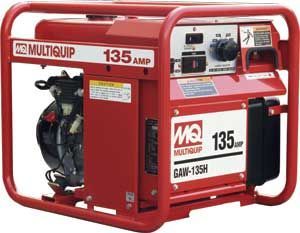

Multiquip GAW135H Gasoline-Powered Welder/Generator

Multiquip GAW135H Gasoline-Powered Welder/Generator

Store / Shop by Brand / Multiquip
$3,731.10
In stock
Product Details
135 Amps DC, 1.5 KW/120V AC, Honda GX200
Coming in at only 114 pounds, Multiquip's 135-amp welder is the number one choice for those hard to reach areas with its maintenance free permanent magnet generator design. This unit maintains the quality output contractors demand and have come to expect.
  • 135 amps of DC welding power, 1.5kW AC output
  • Dry weight of only 114 pounds (52 kg)
  • Honda GX200 gasoline engine
  • Up to 45% lighter than other welders in its class
  • Can be mounted to service trucks or on high reach baskets
  • Ideal for a wide variety of utility welding applications



Unit Specifications
DC Voltage CC: 25.2 V CV: n/a V
DC Current CC: 135 A CV: n/a A
Current Range 40-135 A
Max Duty Cycle
w/ Full Amps Availible		 40% @135 A
Welding Processes SMAW
FCAW
Fuel Tank Capacity 1.6 gal 7.3 L
Fuel Consumption
at Rated Load		 0.46 gph
Generator Specifications
AC Power Output
(Single Phase)		 1.5 kW
Cycle 60 Hz
Voltage 120 V
Amperage 12.5 A
Voltage Regulation 3 %
Receptacles NEMA 5-20R 125V GFCI 20A
Dimensions & Weights
Overall Length 21.75 in 55.25 mm
Overall Width 17.75 in 45.1 mm
Overall Height 19 in 48.26 mm
Shipping Dimensions 22.5 x 19 x 20.5 in
57.2 x 48.25 x 52 mm
Operating Weight 123 lb 55.7 kg
Shipping Weight 114 lb 51.7 kg
Engine Specifications
Engine Make/Model Honda GX-200
Start Method Recoil
Engine Power 5.5 HP 4.1 kW
Engine RPM 3600
Fuel Type Gasoline
Show More
